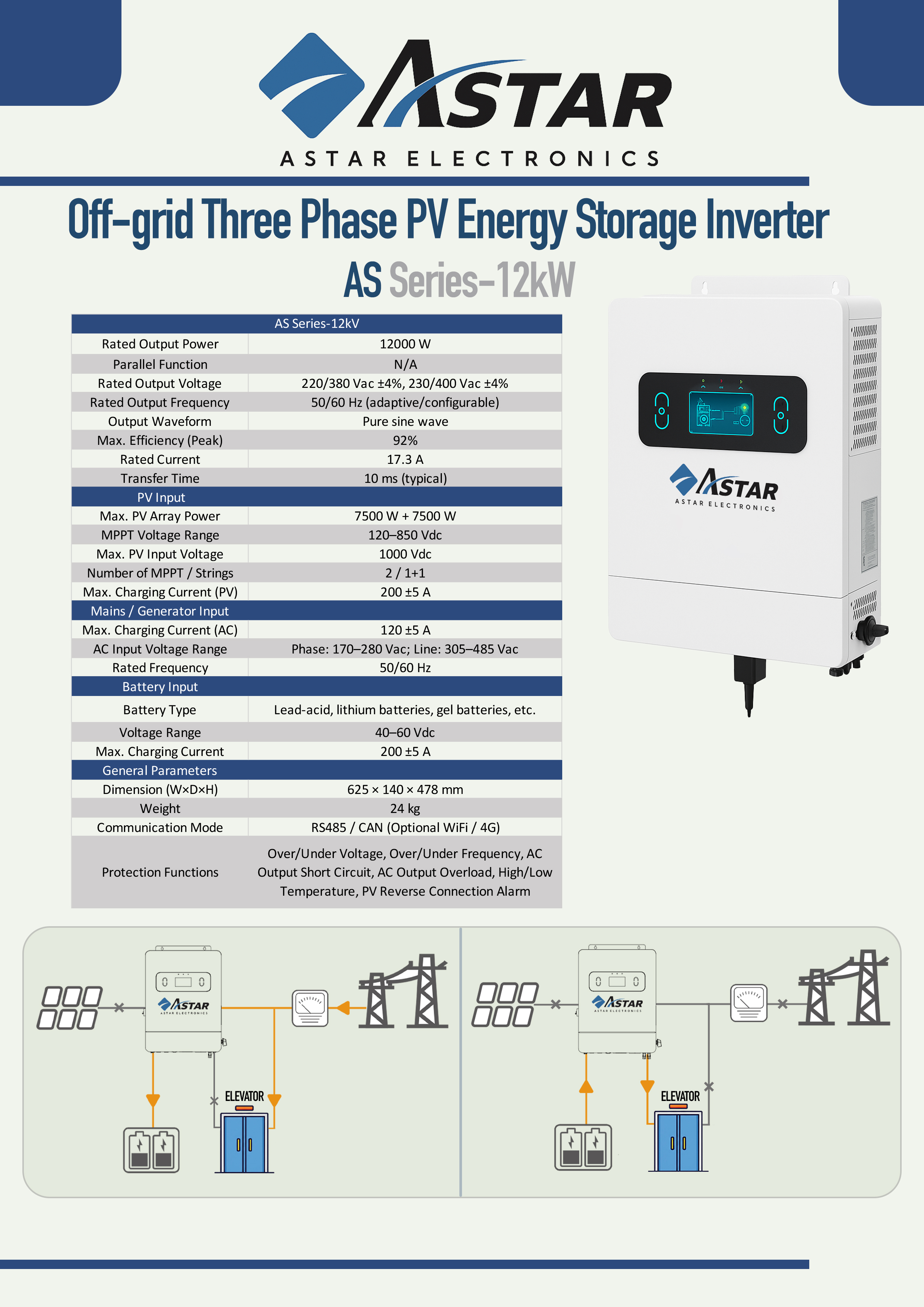

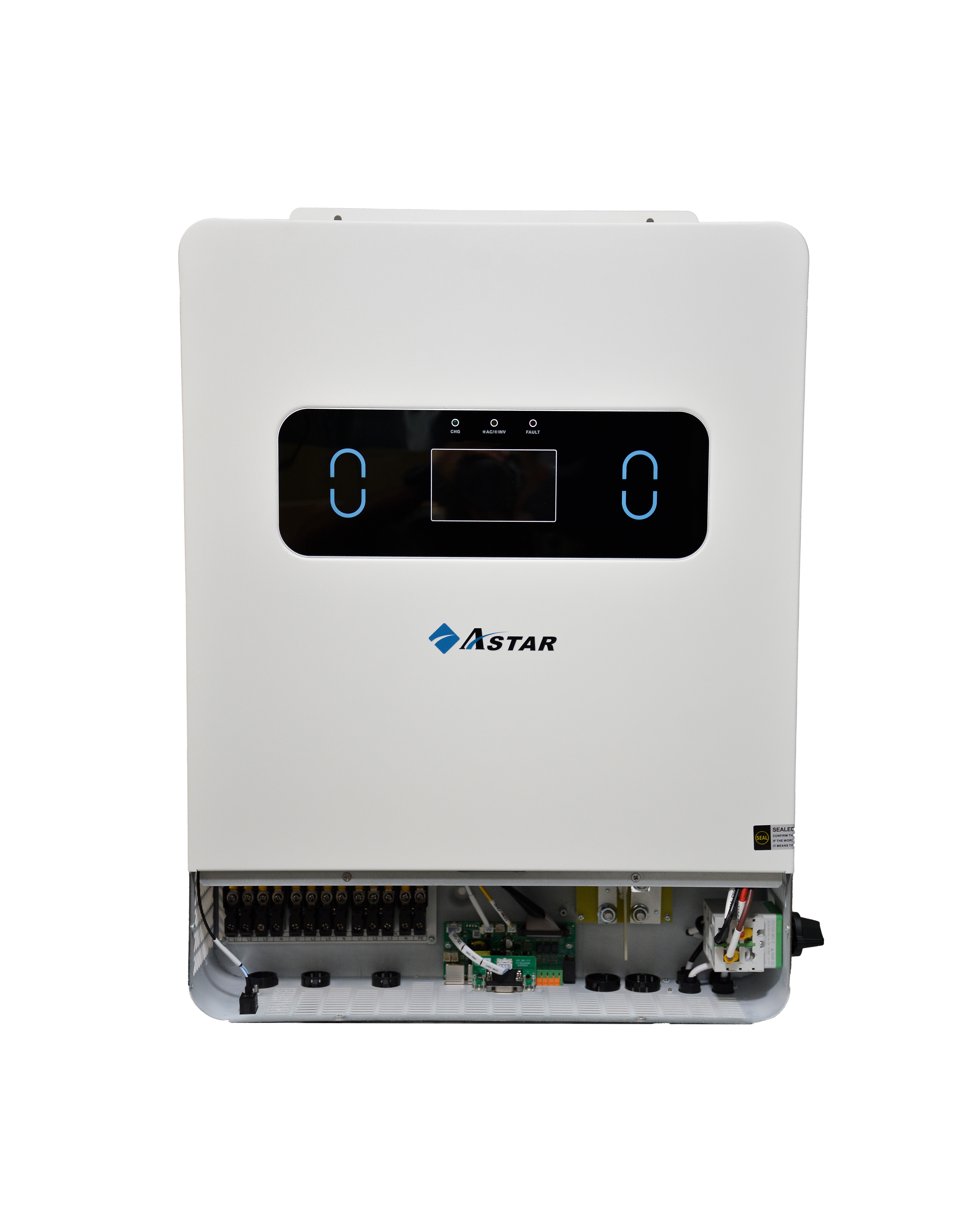

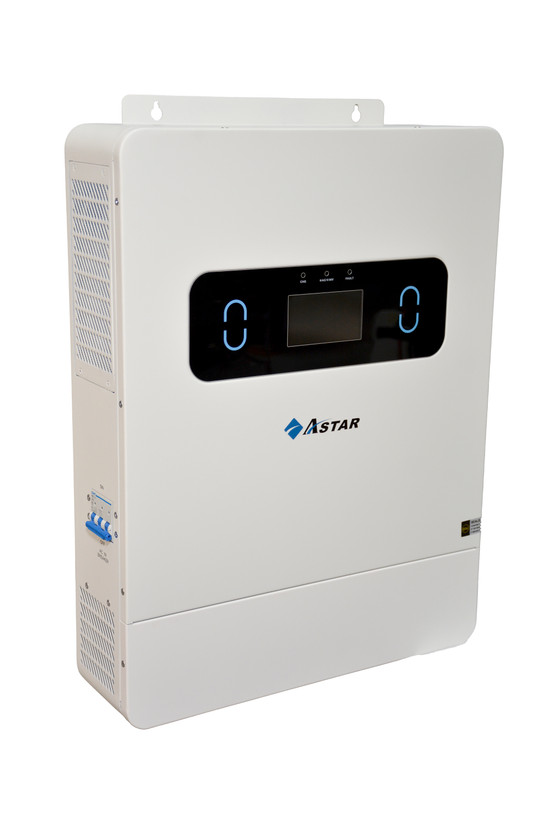

سانورتر ASun12/3Phase برند Astar

Rated Output Power

۱۲ KW

Max. PV Input Power

۷۵۰۰ وات + ۷۵۰۰ وات

Battery Type

Lead-acid, lithium batteries, gel batteries, etc.

Parallel Function

N/A

Rated Output Voltage

220/380 Vac ±4%, 230/400 Vac ±4%

Rated Output Frequency

50/60 Hz (adaptive/configurable)

Output Waveform

Pure sine wave

Rated Current

17.3 A

Max. Efficiency (Peak)

92%

Transfer Time

10 ms (typical)

Max. PV Input Voltage

1000 Vdc

MPPT Voltage Range

120–850 Vdc

Max. Charging Current (PV)

200 A

Number of MPPT / Strings

2 / 1+1

Weight

24 kg

Dimension (W×D×H)

625 × 140 × 478 mm

Communication Mode

RS485 / CAN (Optional WiFi / 4G)

Protection Functions

Over/Under Voltage, Over/Under Frequency, AC Output Short Circuit, AC Output Overload, High/Low Temperature, PV Reverse Connection Alarm
